Soil Free Swelling Rate Tester, Funnel Soil Measuring Cup Stirrer, Inner Diameter 20mm, Capacity 10mL, for Determining Cohesive Soil Moisture Content

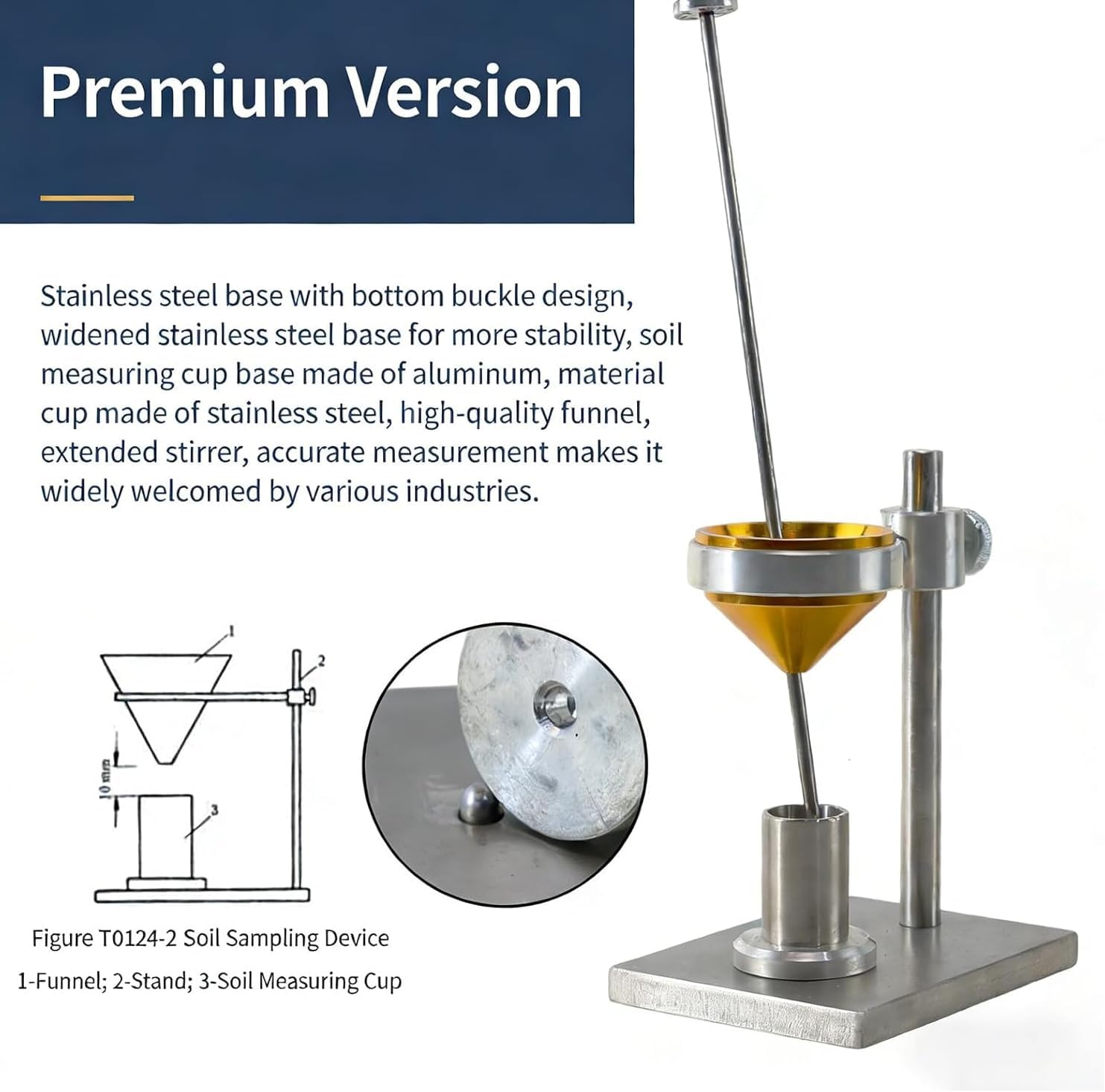

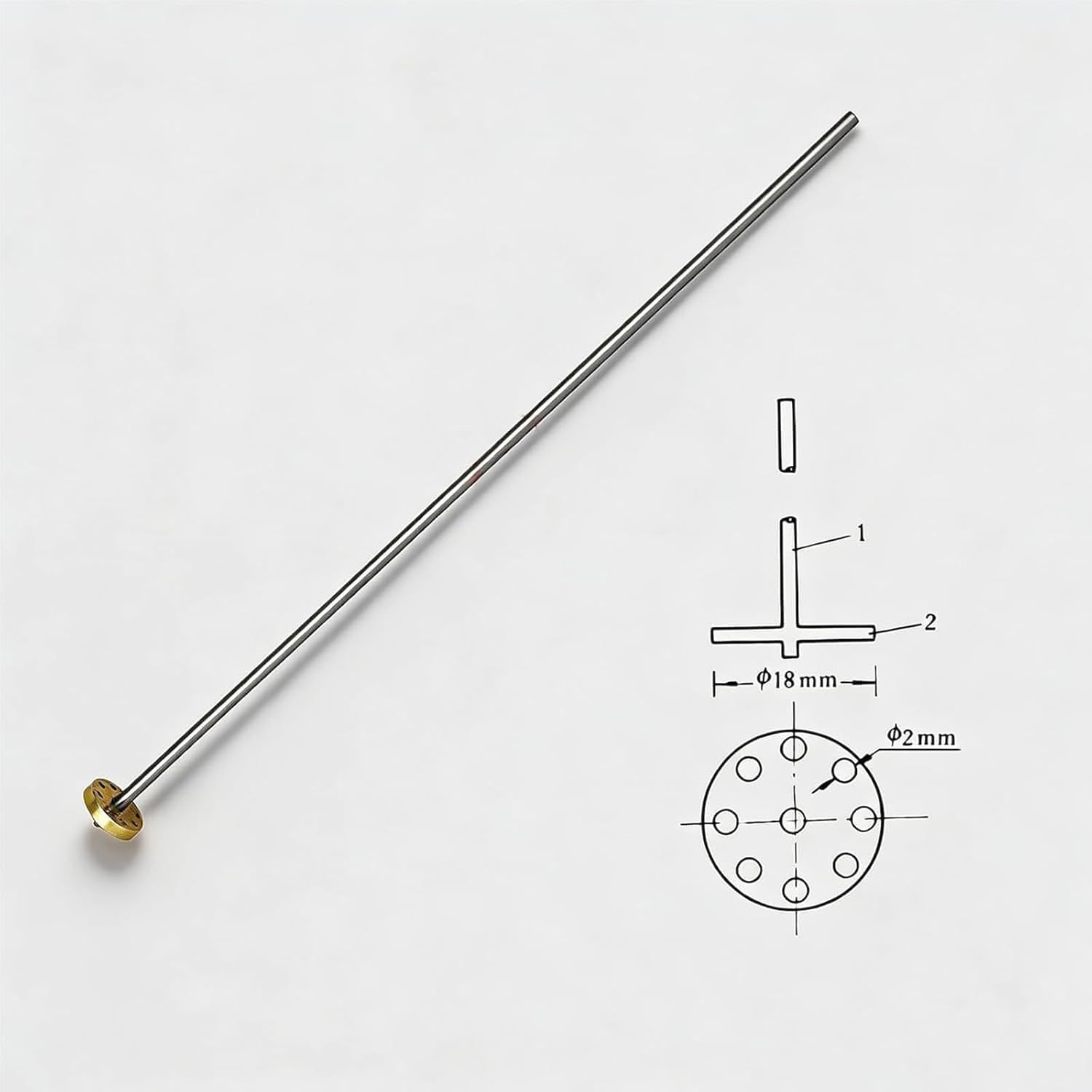

Product Parameters: Product Name: Soil Swelling Rate Tester Soil Measuring Cup: Capacity 10mL, Inner Diameter 20mm, Height 32.8mm Neckless Funnel: Upper Diameter 50~60mm, Lower Diameter 4~5mm The stirrer consists of a straight rod and a perforated circular plate; the circular plate should be slightly smaller than the diameter of the measuring cup. Applications: Primarily used to determine the volume swelling rate of cohesive soil during immersion and the moisture content after swelling stabilizes. Packaging List: Soil Swelling Rate Tester *1

• 【Strong Compatibility】Specifically designed for determining the free swelling rate of loose soil particles such as clay, the Soil Swelling Rate Tester is compatible with quality testing in highway, railway, and geological engineering projects.
• 【High-precision Testing】The Soil Free Swelling Rate Tester features a stirrer that makes close contact with the inner wall of the measuring cylinder, ensuring thorough mixing at the bottom and uniform dispersion of soil particles for accurate test results.
• 【Durable】The Neckless Funnel Soil Measuring Tool is corrosion-resistant and deformation-resistant, requiring only wiping and cleaning for maintenance, significantly reducing laboratory operating costs.
• 【Easy Operation】The Funnel Soil Measuring Cup Stirrer employs a modular structure, enabling simple and quick parallel testing procedures. Its portable design enhances laboratory efficiency.
• 【Complete Accessories】The fixed combination of the soil measuring cup and neckless funnel ensures consistent natural sample accumulation, improving test repeatability and comparability, perfectly suited to the core testing workflow of the Soil Swelling Rate Tester.
